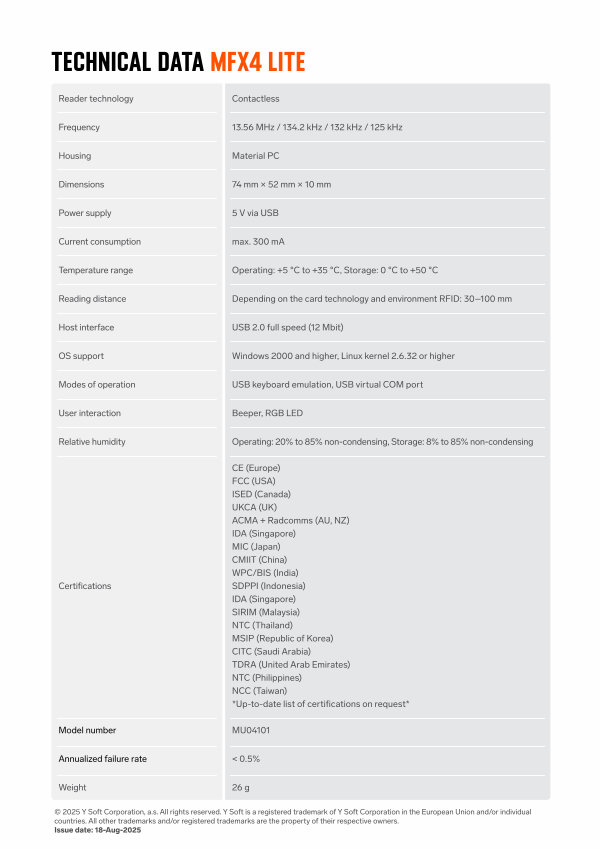

TECHNICAL DATA MFX4 LITE
Reader technology Contactless
Frequency 13.56 MHz / 134.2 kHz / 132 kHz / 125 kHz
Housing Material PC
Dimensions 74 mm × 52 mm × 10 mm
Power supply 5 V via USB
Current consumption max. 300 mA
Temperature range Operating: + 5 ° C to + 35 ° C, Storage: 0 ° C to + 50 ° C
Reading distance
Depending on the card technology and environment RFID: 30 – 100 mm
Host interface USB 2.0 full speed( 12 Mbit)
OS support Windows 2000 and higher, Linux kernel 2.6.32 or higher
Modes of operation USB keyboard emulation, USB virtual COM port
User interaction Beeper, RGB LED
Relative humidity Operating: 20 % to 85 % non-condensing, Storage: 8 % to 85 % non-condensing
Certifications
CE( Europe) FCC( USA) ISED( Canada) UKCA( UK) ACMA + Radcomms( AU, NZ) IDA( Singapore) MIC( Japan) CMIIT( China) WPC / BIS( India) SDPPI( Indonesia) IDA( Singapore) SIRIM( Malaysia) NTC( Thailand) MSIP( Republic of Korea) CITC( Saudi Arabia) TDRA( United Arab Emirates) NTC( Philippines) NCC( Taiwan) * Up-to-date list of certifications on request *
Model number
MU04101
Annualized failure rate < 0.5 %
Weight
26 g
